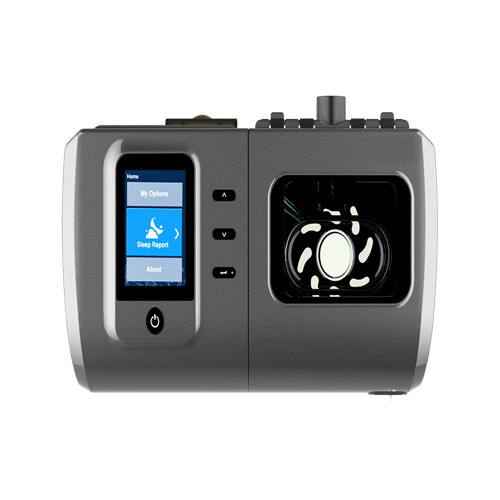

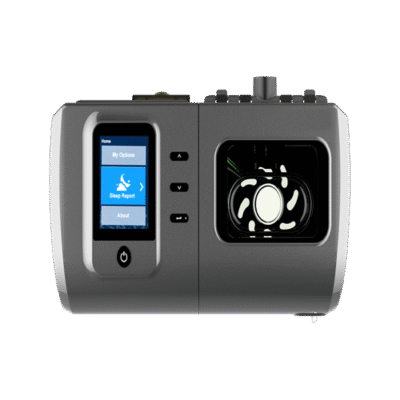

Auto BIPAP VM-7 Machine
Shipped From Abroad
The VentMed BiPAP VM7 is an automatic bi-level device that delivers effective therapy for a wide range of users noncompliant with traditional CPAP devices. It delivers two different values of air pressure, one for inhaling, another for exhaling, to hold a user’s upper airway open and help him/her breathe more effectively. The VentMed VM7 is a premium BiPAP for patients who have been diagnosed with severe sleep apnea.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Key Features of Auto BIPAP VM-7:
Auto ON / OFF
Designed to make the device start automatically in a while after you wear mask, and stop the device work automatically in 10 seconds after you take mask away. The Auto ON/OFF function can be turned off on the menu.
Smart Ramp Settings
It lets the sleep apnea therapy start from a low and pleasant pressure level when the user is still awake. Then the air pressure is gradually ramped up to the correct level and the user can easily fall asleep without even noticing the increment.
Sleep Tracking
It comes with a TF card that will allow you to keep detailed data about your sleep disorder. The new TF card will allow you to store your sleep apnea information, which will enable you to get therapy support from your doctor, and compile compliance reports.
Alarm Setting
Designed to alarm when there is leakage. Can set as ON or OFF.
Whisper-Quiet
It is less than 26 decibels (dB), making it quieter than a whisper and comparable to leaves rustling.
Expiratory Pressure Relief
The VM7 BIAP automatically sets EPR (Expiratory Pressure Relief) function so you may find it easier to breathe out. This can help you get used to therapy.
You can set the expiratory pressure relief Level to off (0) or between 1 and 3, where 1 is the lowest expiratory pressure relief and 3 is the highest setting.
Heated Humidifier
The humidifier moistens the air and is designed to make therapy more comfortable. You can set the Humidity Level to off (0) or between 1 and 5, where 1 is the lowest humidity setting and 5 is the highest humidity setting.
The push-pull water tank design is very easy to disassemble and install, which is convenient for adding water and cleaning.
ST Mode & Backup Rate (BUR)
A BPM value (Breaths per Minute) can be set as a backup rate in ST Mode. If the user’s spontaneous respiratory rate falls below that value, the device will add pressure to prompt him/her to breathe.
With the machine intervening in the breathing, it can help the user inhale and exhale more easily during challenging conditions, lowering respiratory muscle workload. It can also get the user more oxygen and reduce CO2 in the user’s bloodstream.
Specifications
|
Product Name
|
BIPAP VM-7
|
|
Material
|
ABS+plastic
|
|
Color
|
Black
|
|
Work mode
|
CPAP,Auto,Auto S, S,T,ST
|
|
Sound
|
<28db
|
|
Data storage
|
TF card
|
|
Screen
|
2.8 inch color
|
|
Pressure Range
|
4-25cmH2O
|
|
Power supply
|
Input100-240V.50-60Hz,1-2A; Output+24V,2.5V
|
|
Over-temperature protection
|
Stop working automatically,
buzzle ring 4 times
|
|
Ramp item
|
0-60min adjustable 1 min/step
|
|
Auto ON/OFF
|
Yes
|
|
EPR
|
Yes,0-3 level
|
|
Auto-Altitude
|
Yes
|
|
Leak compensation
|
Yes
|
|
Awake detection
|
Yes
|
|
Breath Event detection
|
Yes
|
|
Auto pressure titration
|
Yes
|
|
Water Capacity
|
200ML max
|
|
Humidifier
|
Heated Humidifier,0-5 level
|
|
Mask /power Off Alarm
|
Yes
|
|
Dimensions
|
29L*15W*10H(machine);
38.5L*36.5W*16H(carton)
|
|
Weight(With humidifier)
|
1.8KG(Net weight);4KG(Gross weight)
|
|
work for
|
OSA /CSA /MSA/ Hypopnea/ COPD
|
