Electric Operating Table HM503E C-Arm Compatible with 300mm Sliding Top
₦2,500,000.00
- Electric HM503E operating table with 300 mm longitudinal sliding movement for surgical positioning and imaging.
- Radiolucent tabletop with interchangeable head and leg sections supports C-arm and X-ray imaging.
- Electric adjustment for height, Trendelenburg, lateral tilt and back section through dual control systems.
- 250 kg safe load with 304 stainless-steel construction, central-brake castors and multiple positioning functions.
Description

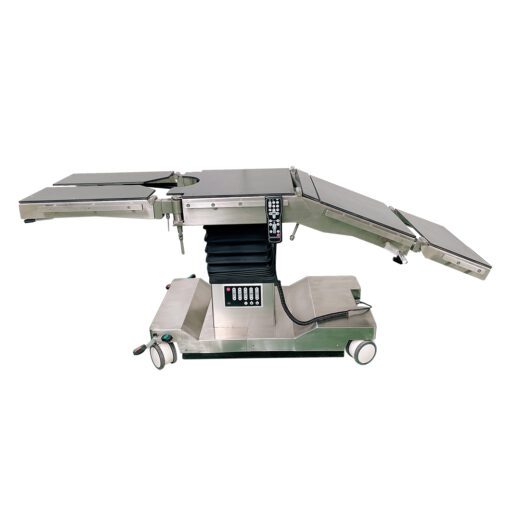

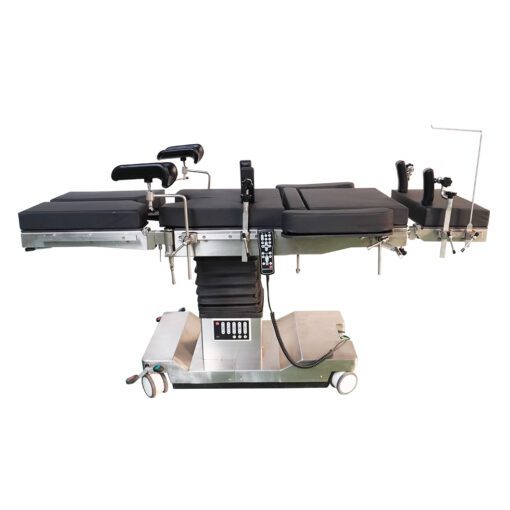

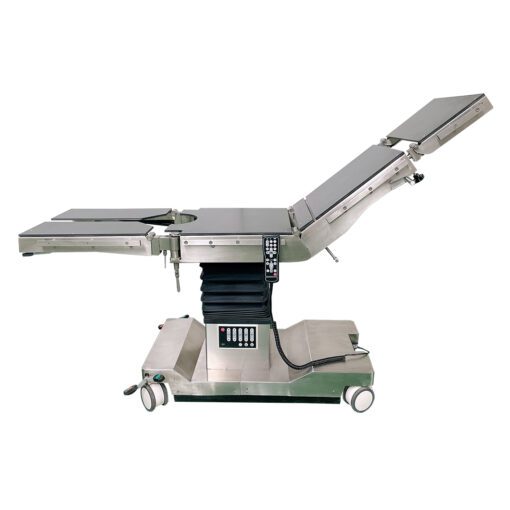

The HM503E Electric Operating Table is a motorized surgical table designed for general surgery, gynecology, obstetrics, proctology, urology, and orthopedic procedures. Its radiolucent tabletop and 300 mm electric longitudinal movement provide flexibility for X-ray and C-arm imaging during surgical procedures.

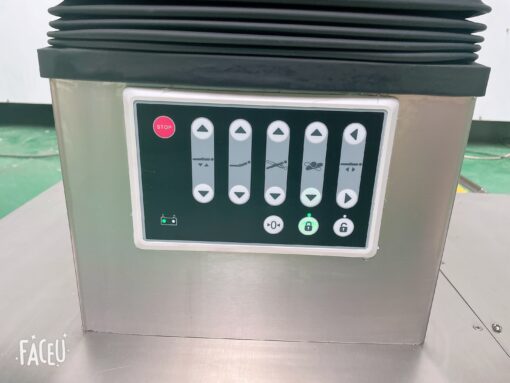

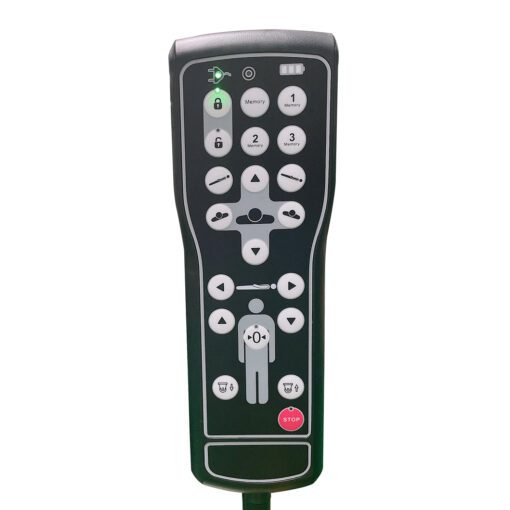

The table combines electric positioning with dual control through a hand controller and column-mounted control panel. Height, Trendelenburg, lateral tilt, back section, and longitudinal sliding can be adjusted electronically, while the interchangeable head and leg sections provide additional positioning flexibility.
Constructed with a premium 304 stainless-steel frame and mobile base, the table uses 125 mm castors with a central brake. It also includes zero-position, FLEX and REFLEX functions, position memory, emergency stop controls, and battery status indicators.
Key Features & Specifications
General
- Model: HM503E
- Type: Electric operating table
- Application: General surgery, gynecology, obstetrics, proctology, urology, orthopedic operations
- General Dimension: 2100 × 530 mm
- Power Source: Electric motorized system
- Control: Hand remote + column-mounted control
- Safe Load: 250 kg
Tabletop & Imaging
- Tabletop Material: Radiolucent compact laminate board
- Optional Tabletop: Carbon fiber board
- C-Arm Compatibility: Yes
- Longitudinal Sliding: 300 mm, electric
- Maximum Radiolucent Area: 400 × 1380 mm ±10 mm
- Head & Leg Section Interchange: Yes
Electric Positioning
- Tabletop Elevation: 700–1000 mm
- Trendelenburg: ±30°
- Lateral Tilt: ±20°
- Back Section: +70° / -30°
Manual Positioning
- Head Board: +45° / -90°
- Leg Board: +15° / -90°
- Kidney Elevator: 0–120 mm
- FLEX: ≥220°
- REFLEX: ≤110°
Construction & Controls
- Construction: 304 stainless steel
- Base: Mobile stainless steel base
- Castors: 125 mm
- Brake: Central brake
- Functions: One-key zero position, position memory, FLEX/REFLEX positioning
- Safety: Emergency stop switches at three locations
- Indicators: Power and storage battery indicators
Standard Accessories
- Shoulder supports ×2
- Waist supports ×2
- Arm supports ×2
- Leg supports ×2
- Anesthetic screen frame ×1
- Mattress ×1
- Hand controller ×1
- Column controller ×1
- Power line ×1
Packaging
- Package Material: Plywood case
- Case Dimensions: 1400 × 750 × 965 mm
- Case Volume: 1 CBM
- Gross Weight: 255 kg
